Scenario - Upload an enrolment (registration)

Note: jurisdiction has now been added to transaction batch route.

This scenario explains how a student management system (SMS) submits a first‑time enrolment by registering students and their related training activity.

It describes how to create and manage a transaction batch, upload the required linked resources using the minimal unit record (MUR), and record enrolments with a Registered lifecycle state.

The scenario also outlines the recommended validation approach to support data quality while reducing unnecessary validation requests and system impact.

Key points:

  • Explains the process for registering an enrolment

  • upload an enrolment using the minimum unit record definition

  • create and manage a transaction batch

  • request asynchronous validation only when data entry is complete

  • correct any identified issues before re‑validating and submitting the transaction batch.

Note: Other enrolment lifecycle states and reporting flows are demonstrated in other scenarios.

Minimal unit record context

This scenario represents a first‑time enrolment submission and uses the minimal unit record (MUR) as a starting point. The MUR provides a minimal, structurally valid representation of enrolment data that supports early development and testing.

In this scenario, MUR‑based payloads are used to demonstrate initial data entry and validation behaviour. Once data has been uploaded into the transaction batch, subsequent updates focus on supplying only the minimum fields required to correct or adjust data, rather than resubmitting the full MUR payload.

See also Minimal unit record.

Sequence overview

An SMS creates a transaction batch, uploads one or more sets of linked top‑level resources, requests asynchronous validation, polls for validation completion, retrieves validation results, and submits the transaction batch once validation is successful.

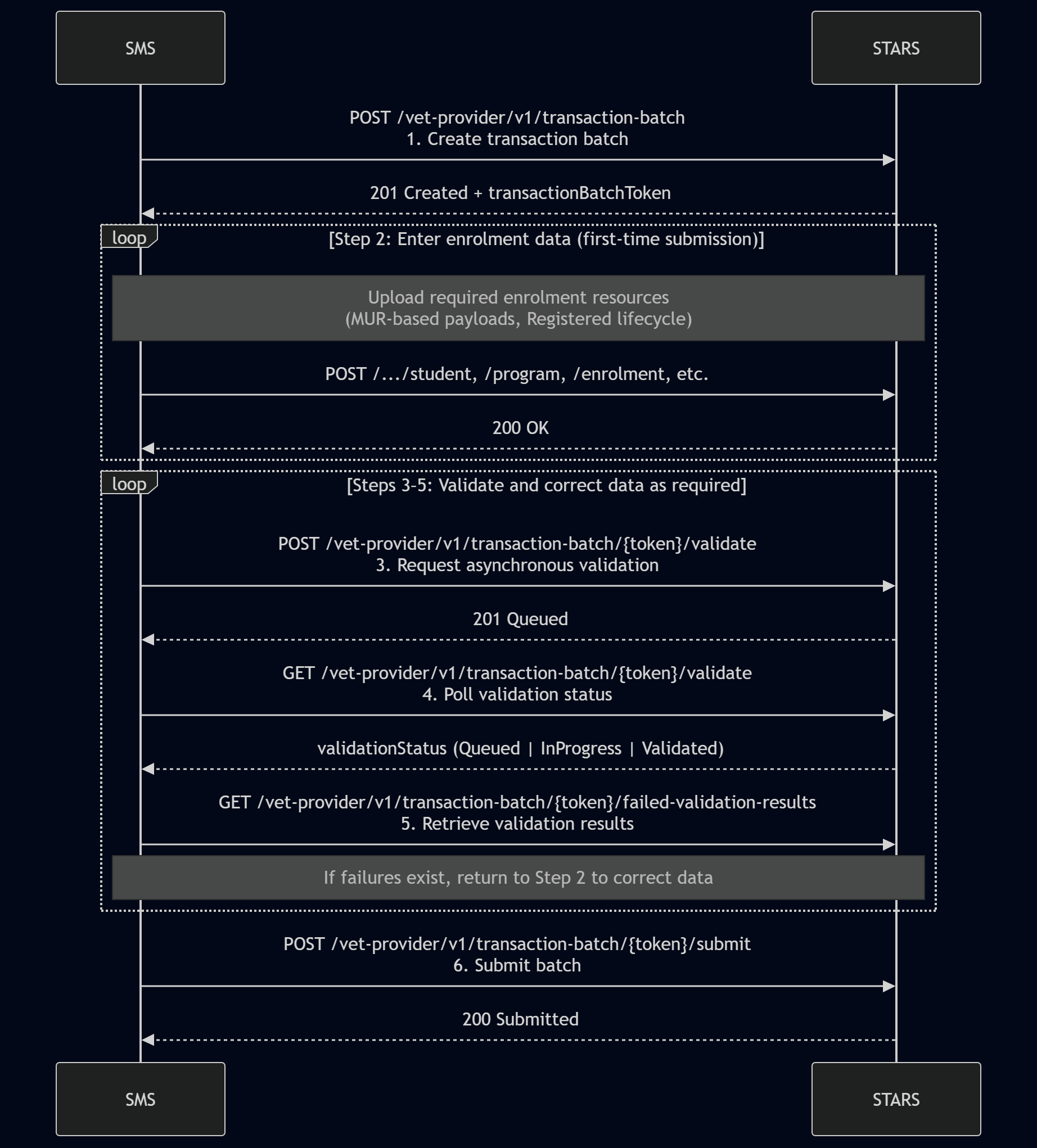

Sequence diagram

Note: Security and authentication flows are not shown.

Step‑by‑step flow

Step 1: Create transaction batch

  • POST /vet-provider/v1/{jurisdiction}/transaction-batch

  • Returns transactionBatchToken

Step 2: Enter enrolment data (first‑time submission)

  • Upload enrolment data using MUR‑based payloads

  • Resources may be uploaded incrementally (Student, Program, Enrolment, etc.)

  • Lifecycle state is Registered

This step may be repeated until the SMS user determines that all required data has been entered.

Step 3: Request asynchronous validation (recommended)

  • POST /vet-provider/v1/{jurisdiction}/transaction-batch/{token}/validate

  • Validation is queued

Step 4: Check validation status

  • GET /vet-provider/v1/{jurisdiction}/transaction-batch/{token}/validate

  • Check whether validation has completed (validationStatus = Validated)

Step 5: Retrieve failed validation results

  • GET /vet-provider/v1/{jurisdiction}/transaction-batch/{token}/failed-validation-results

If blocking failures are returned

  • Review failed validation results

  • Return to Step 2 to correct data, noting each upload must include the complete top-level resource and all current child objects

  • Repeat Steps 3–5 as required.

This loop may occur multiple times, but validation re‑runs should be limited until all corrected data is uploaded.

Step 6: Submit transaction batch

  • POST /vet-provider/v1/{jurisdiction}/transaction-batch/{token}/submit

  • Batch is submitted once validation returns no blocking failures

End state

The enrolment data has been submitted to STARS with a Registered lifecycle state.

Validation and testing

The Reconciliation UID Match can be used to check that the change tracking identifier matches the change tracking identifier submitted.
