Scenario - Handle API failures

Note: jurisdiction has now been added to transaction batch route.

This scenario explains how a student management system (SMS) manages common API‑level failures.

It covers issues such as authentication errors, invalid requests, and missing resources, and shows how an SMS identifies these errors, resolves them, and retries the request to successfully upload data.

Key points

  • explains the process to handle API failures

  • detect common API‑level errors returned

  • correct and retry failed API operations correctly

  • continue using the same transaction batch after recovery

  • recover safely from authentication, request, or resource issues

Sequence overview

An SMS creates a transaction batch, uploads resources, manages API errors in line with the error response, and submits the transaction batch once issues are resolved.

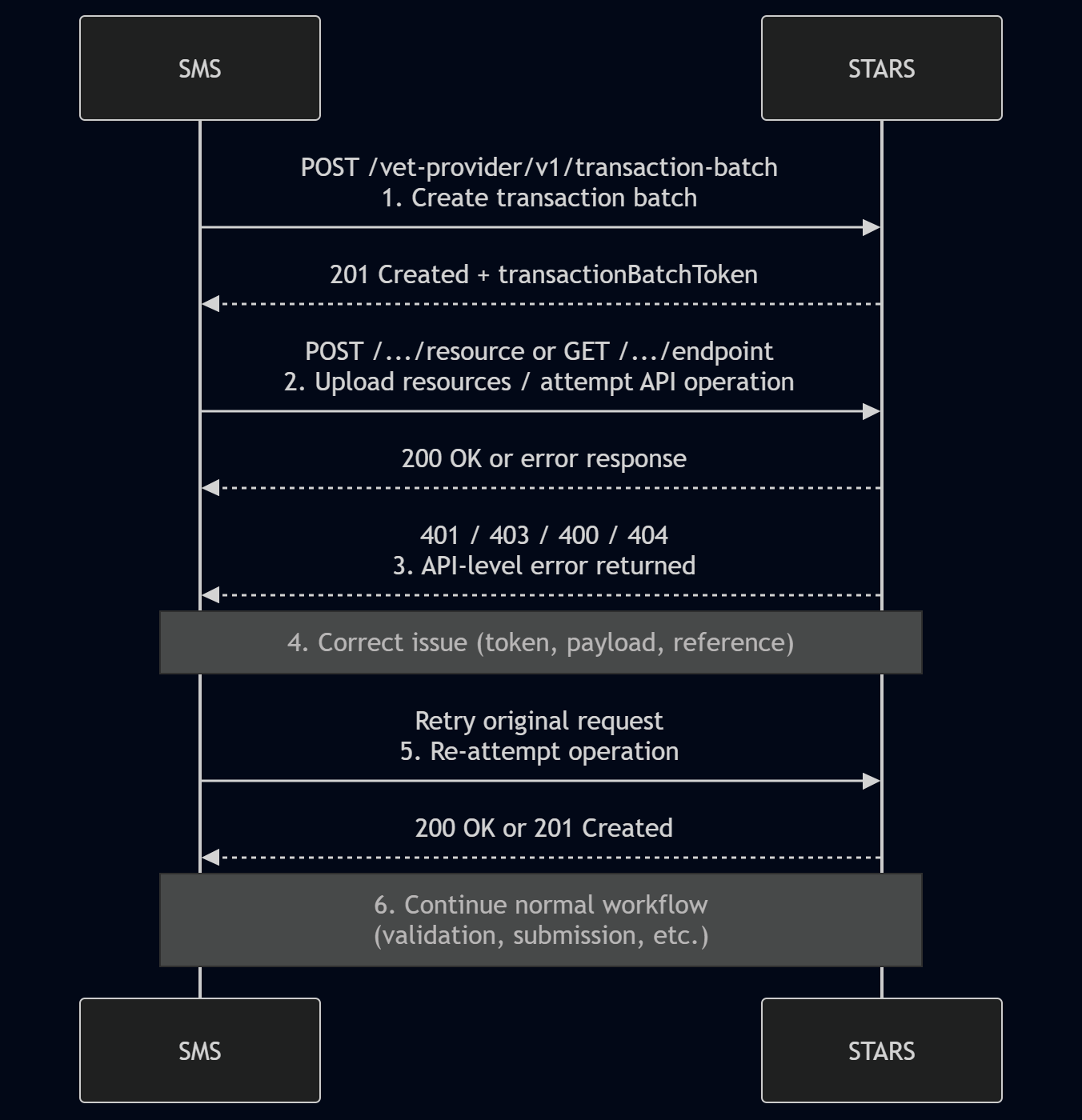

Sequence diagram

Note: Security and authentication flows are not shown.

Sequence diagram

Step‑by‑step flow

Step 1: Create transaction batch

  • SMS action:
    POST /vet-provider/v1/{jurisdiction}/transaction-batch

  • STARS response:
    201 Created with transactionBatchToken

Step 2: Attempt API operation

The SMS attempts a normal API operation within the transaction batch (for example, uploading a resource or retrieving batch information).

  • SMS action:
    POST /.../resource or GET /.../endpoint

This step represents standard interaction with the STARS APIs and is not specific to error handling.

Step 3: API‑level error is returned

STARS returns an API‑level error response to the SMS.
Common examples include:

  • 401 / 403 – authentication or authorisation failures (for example, expired or invalid token)

  • 400 – malformed or structurally invalid request payload

  • 404 – referenced transaction batch or resource not found

These errors are returned before any data is persisted and do not represent business‑rule validation failures.

Step 4: Correct the issue

The SMS corrects the cause of the API‑level failure, based on the error response returned by STARS.
Examples include:

  • Refreshing or obtaining a new access token

  • Correcting the request payload structure or values

  • Correcting the referenced resource UID or transaction batch token

No data has been stored in STARS at this point.

Step 5: Retry the original request

  • SMS action:
    Retry the original API request using the corrected credentials, payload, or reference

  • STARS response:
    Successful response (200 OK or 201 Created)

Because API‑level errors occur before persistence, it is safe to retry the request after correction using the same transaction batch.

Step 6: Continue with the normal workflow

Once the API‑level issue is resolved, the SMS proceeds with the standard workflow.

End state

The SMS has successfully retried the original request, after correcting the issue, and can continue using the same transaction batch to complete validation and submission as normal.
